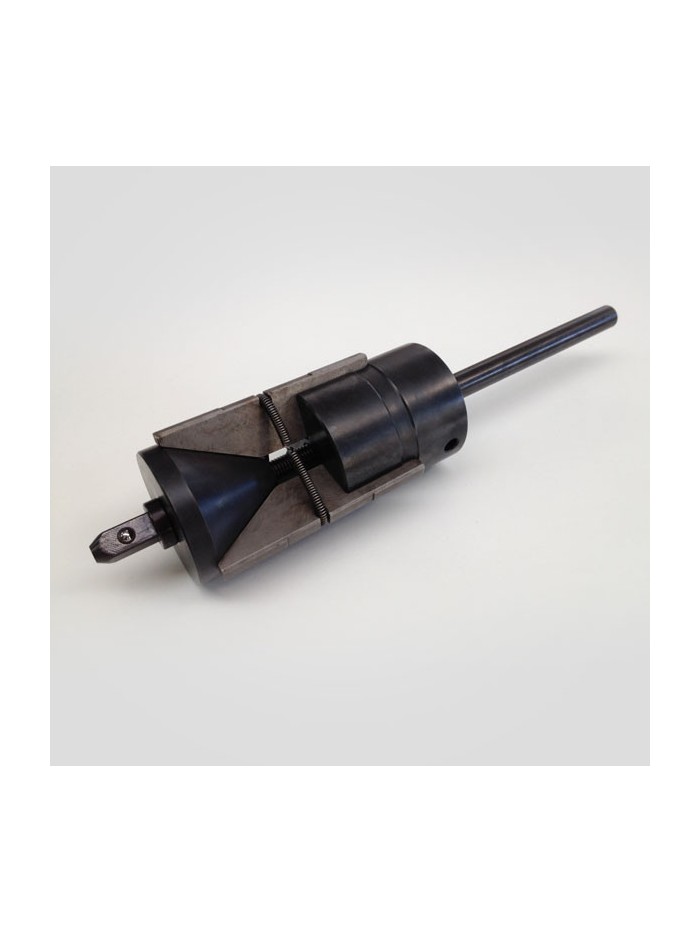

Stopbarr - For maintaining constants set points
FEATURES
Stopbarr is an indispensable accessory to maintain constant the set points of any turning or milling operation on pieces of small or big series (when using a divisor with chuck). Your pieces don’t need to be measured and controlled after, and you save time!
Installation istructions:
Introduce STOPBARR into the spindle shaft hole of the lathe or the divisor and lock it into the desired position by rotating in CW the special key (standard equipment).
ARTICLE | (mm) | ADJUSTMENT FILELD | (inches) |
181924 | 19÷24 | da 3/4″ | a 15/16″ |
232433 | 24÷33 | da 15/16″ | a 1 5/16″ |
283241 | 32÷41 | da 1 1/4″ | a 1 5/8″ |
384152 | 41÷52 | da 1 5/8″ | a 2 1/16″ |
485162 | 51÷62 | da 2″ | a 2 7/16 |
586282 | 62÷82 | da 2 7/16″ | a 3 1/4 |
707393 | 73÷93 | da 2 7/8″ | a 3 11/16 |
8393120 | 93÷120 | da 3 11/16″ | a 4 23/32 |
108117146 | 117÷146 | da 4 5/8″ | a 5 3/4 |
